115V 40A/3s Electronic Centrifugal Switch Motor Accessory for 0-70℃ Operation
Neem contact met mij op voor gratis monsters en coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
skypen: sales10@aixton.com
Als u zich zorgen maakt, bieden wij 24 uur per dag online hulp.
xProductdetails
| Temperatuur | 0-70℃ | Certificering | CE |
|---|---|---|---|
| Maximale stroom | 40a/3s | Schakel Freq | 2s aan/2s uit Max |
| Spanning | 115V | ||
| Markeren | 115V Electronic Centrifugal Switch,40A/3s Motor Accessory,0-70℃ ECS |
||
U kunt de producten die u nodig heeft aanvinken en met ons communiceren op het mededelingenbord.
Productomschrijving

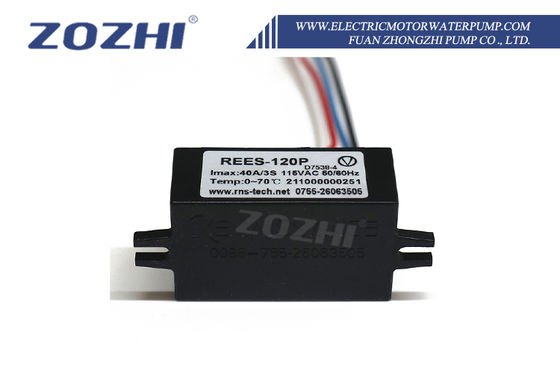

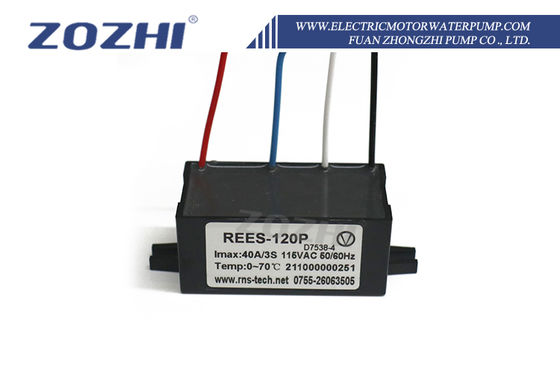

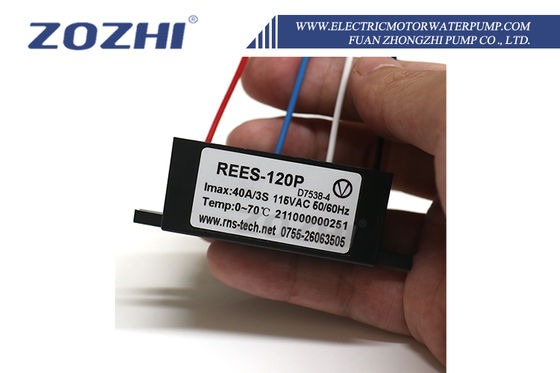

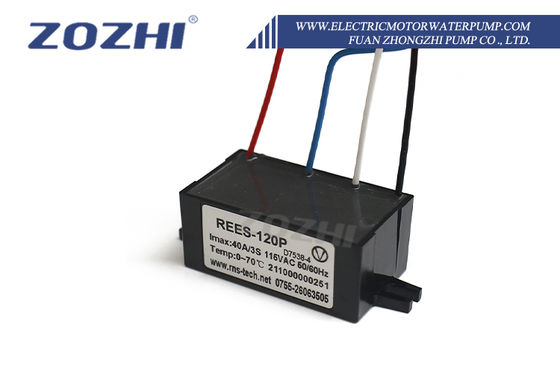

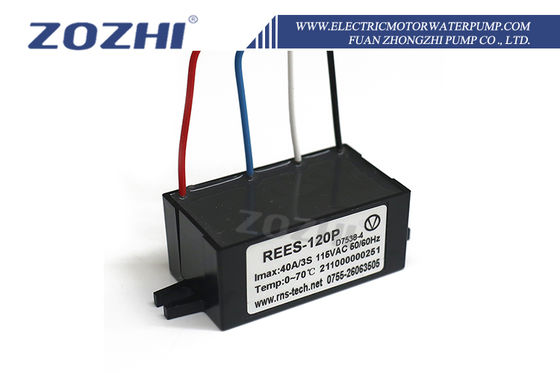

REES-120P 115V Electronic Centrifugal Switch Motor Accessory
Product Overview
The REES-120P Electronic Centrifugal Switch is a solid-state replacement designed for fans and blowers, eliminating common mechanical switch failures while enhancing reliability and performance. Traditional single-phase AC motors using mechanical centrifugal switches often suffer from tolerance build-up, mechanical fatigue, vibration, and electrical sparking. Our Electronic Centrifugal Switch (ECS) monitors speed, voltage/current, and phase to precisely control switching operations.
Key Features
- Compact design with small package size
- Exceptional durability with 1 million cycle lifespan
- Universal compatibility with auto-matching for different motors
- Wide voltage range: 115V (90V-137V) or 230V (198V-264V)
- 50Hz/60Hz operation capability
- Silent operation with no switching noise or contact trembling
- High compatibility with both general-purpose and application-specific motors
- Simple installation and maintenance, fits standard motor frames
- Epoxy resin or silicone rubber sealed construction resists dirt, dust, moisture, and vibration
- Automatic starting capacitor discharge
- Certified to ROHS, CE, and UL standards
Technical Specifications
| Parameter | Value | Unit | Package (mm) |
|---|---|---|---|
| Rated Voltage | 115V/230V | V AC | |
| Max. Start Peak current (20ms, TC=25℃) | 100A (RECS-105/205) 200A (RECS-120/220) 400A (RECS-140/240) 600A (RECS-160/260) |
A | P: 72L*31W*23H P: 72L*31W*23H S: 52L*50W*24H P: 72L*31W*23H C: CAP Case 46Dia*86L |
| Max. Start Peak current (3.0S, TC=25℃) | 30A (RECS-105/205) 60A (RECS-120/220) 120A (RECS-140/240) 180A (RECS-160/260) |
A | |
| Initial switch-on delay time | 80 | mS | |
| Restart delay time (TC=25℃) | 5 | S | |
| ON/OFF Frequency | 0.2 | Cycle/S | |
| Ambient air temperature | 0-70 | ℃ | |
| Dielectric strength (between case and lines) | ≥2500 | V DC |
Model Specifications
| Model Type | Volt Range | Max peak current | Imax(3s) | Power Range |
|---|---|---|---|---|
| RECS-205P | 160-264VAC | 30A | Ima≤15A | 0-550W |
| RECS-220P | 160-264VAC | 60A | Ima≤35A | 600-2200W |
| RECS-240P | 160-264VAC | 120A | Ima≤75A | 2200-4300W |
| RECS-105P | 85-132VAC | 30A | Ima≤15A | 0-330W |
| RECS-120P | 85-132VAC | 60A | Ima≤35A | 300-1100W |
| RECS-140P | 85-132VAC | 120A | Ima≤75A | 1100-2200W |
| RECS-020T | 85-264VAC | 60A | Ima≤35A | 110V 300-1100W 220V 600-2200W |
